Mounting Structure
Cutting-Edge Technology of Mounting Structures for Advanced Photovoltaic Solutions
We specialize in providing innovative, stable, and cost-effective mounting solutions for photovoltaic (PV) projects. Our state-of-the-art mounting structures ensure enhanced energy generation, ease of installation, and adaptability to diverse applications. Whether for residential, commercial, or industrial projects, our systems cater to every requirement with precision engineering and robust design.
Roof Mounting Systems
Tailored for residential distributed generation, as well as commercial and industrial distributed energy solutions, our roof mounting systems deliver exceptional stability, flexibility, and efficiency.
description1
Mounting System Solutions
01

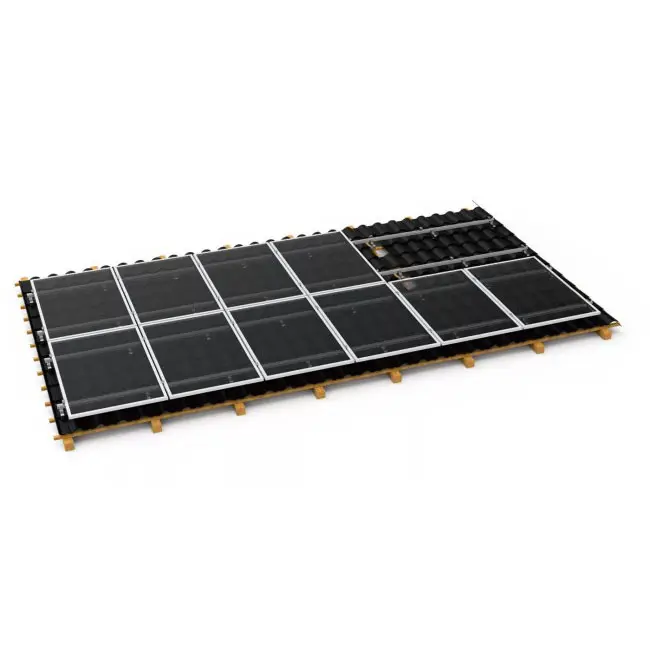

Sloping Roof Bracket System (Type A)
- **Key Features**:
- Versatile design compatible with different roof types and tiles of various strengths and shapes.
- Adjustable roof hooks for both flat and uneven surfaces.
- **Quick Installation**: Simple assembly of parts for fast and efficient deployment.
- Guide rails and fixtures available in **silver or black anodizing** for aesthetic customization.
02
Sloping Roof Bracket System (Type B)
- **Key Features**:
- Supports various roof types with strong and stable components.
- Adjustable hooks for tiles of varying strengths.
- Simplified installation process with a certain degree of flexibility.
- **Customizable Rails and Clamps**: Offered in silver and black anodizing finishes.
03

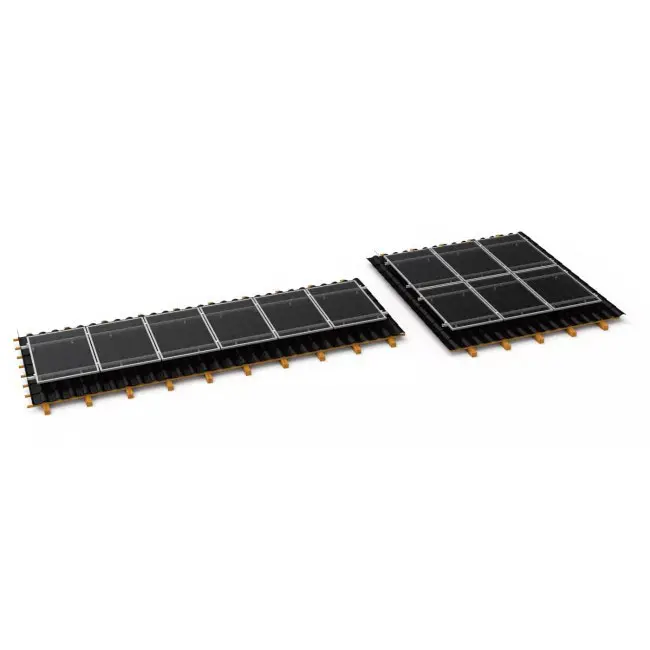

Sloping Roof Bracket System (Type C)
- **Key Features**:
- Optimized for a variety of roof types with similar functionality to Types A and B.
- Enhanced stability and quick installation.
- Available in both silver and black anodized finishes for rails and clamps.
04

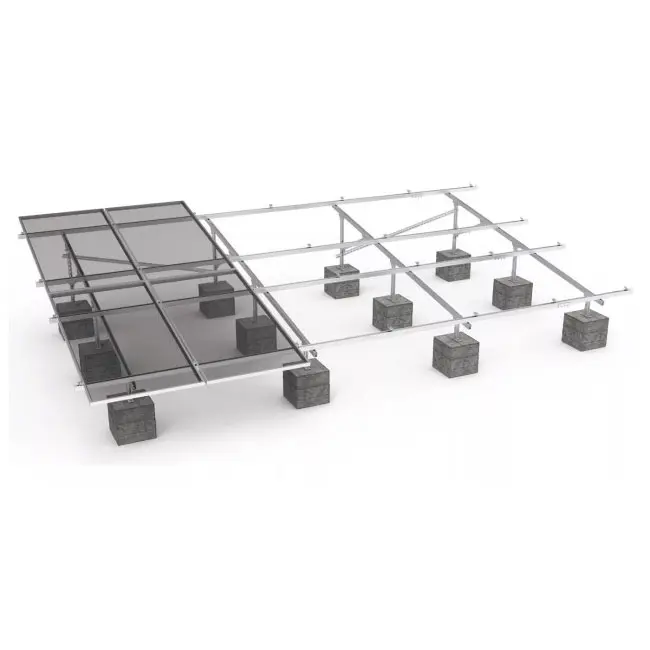

Flat Roof Cement Foundation Bracket System
- A durable and reliable system designed for flat cement roofs.
05
Self-Weight Roof Bracket System
- Available Configurations:

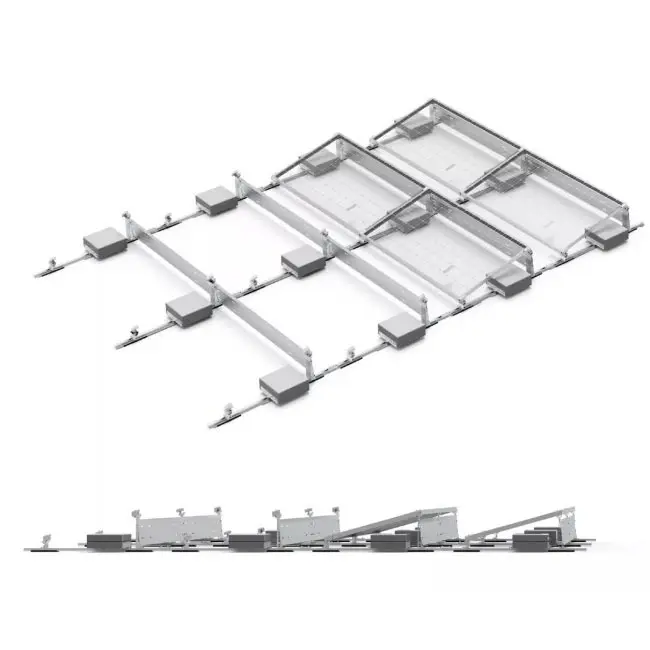

- South-Facing Short Edge Series.

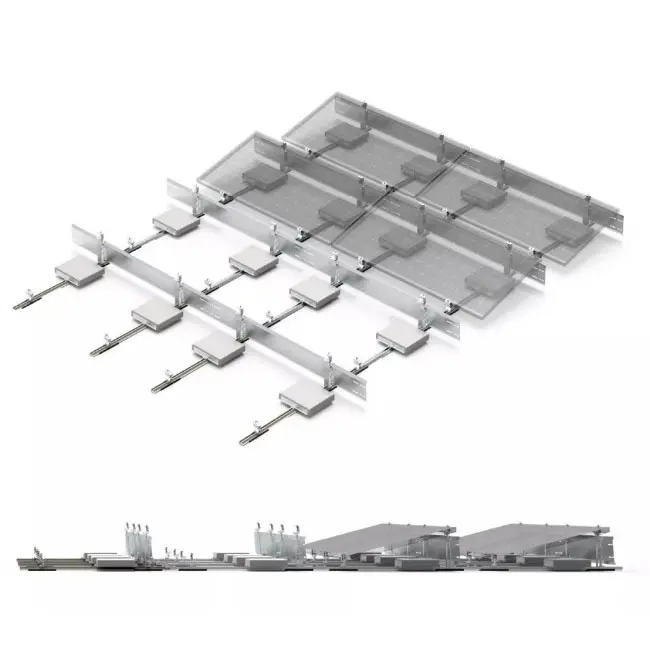

- South-Facing Long Edge Series.

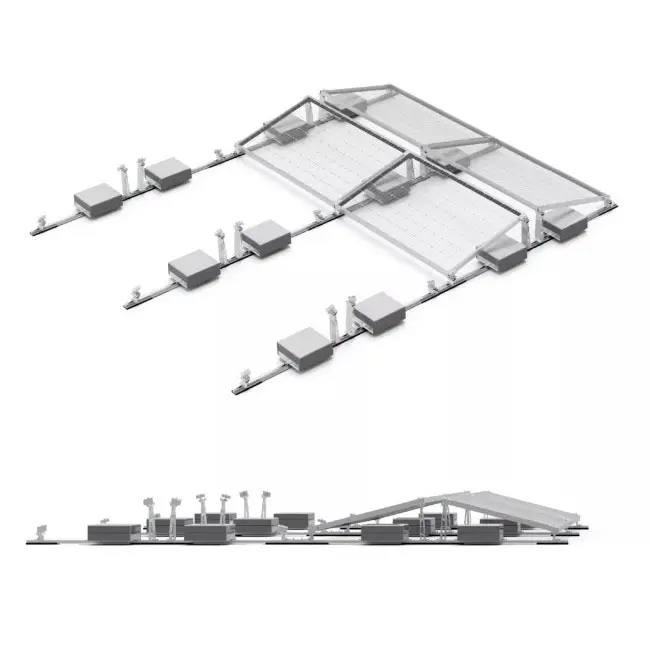

- East-West Facing Short Edge Series.

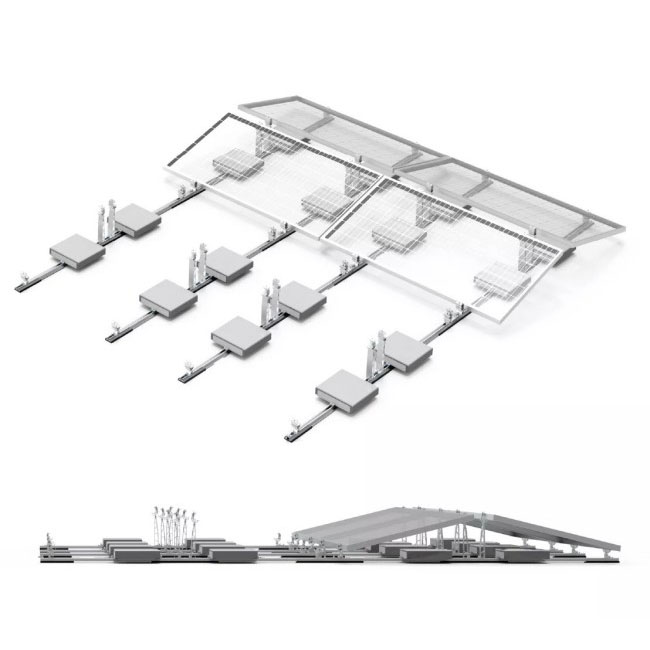

- East-West Facing Long Edge Series.
06

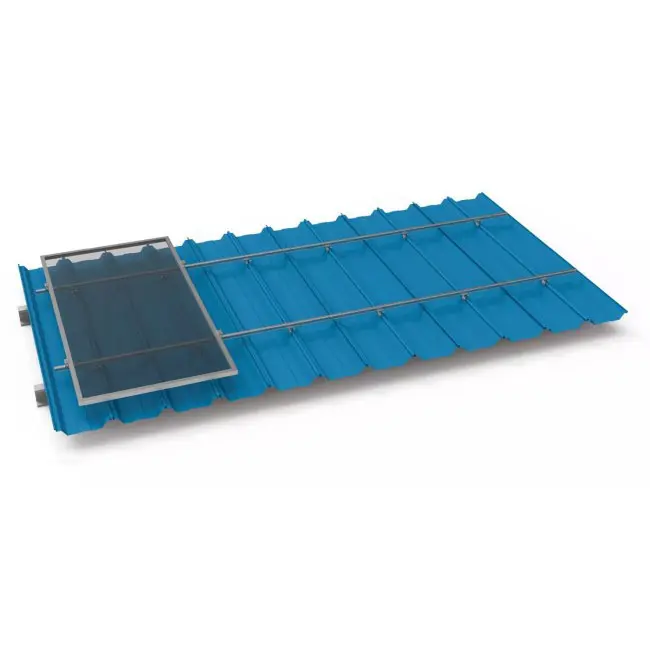

Type A Metal Roofing Bracket System
- Designed specifically for metal roofing, offering long-term durability and adaptability.
07

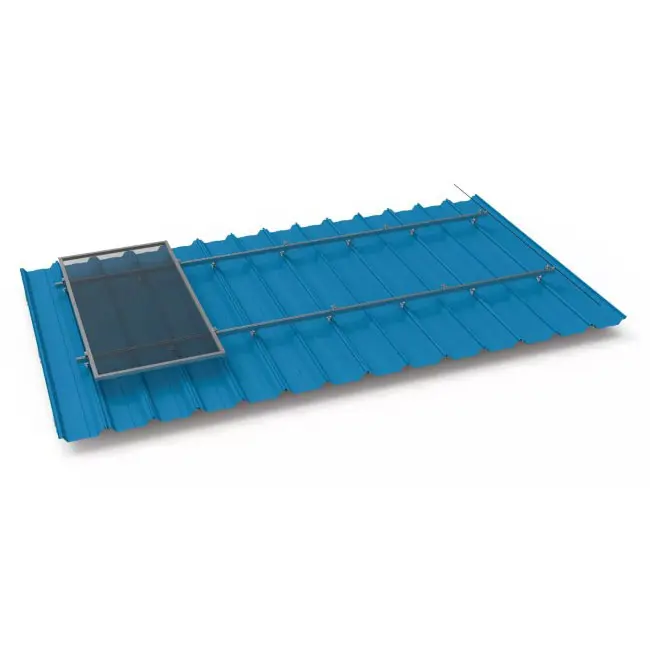

Color Steel Tile Roof Bracket System (Type B)
- Designed specifically for metal roofing, offering long-term durability and adaptability.
08

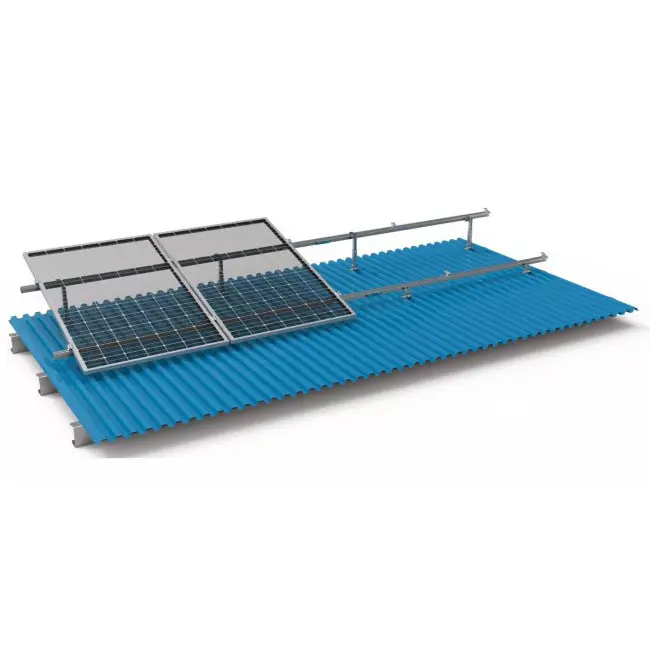

Adjustable Roof Support System
- **Tilt Angle Options**:
- Fixed: 5°.
- Adjustable: 10-15°, 15-30°, 30-45°.
- **Structural Stability**:
- Features a closed-section telescopic rod locked with double-sided bolts for extra strength.
- **Error Prevention**:
- Anti-exit limit structure prevents installation mistakes.
09

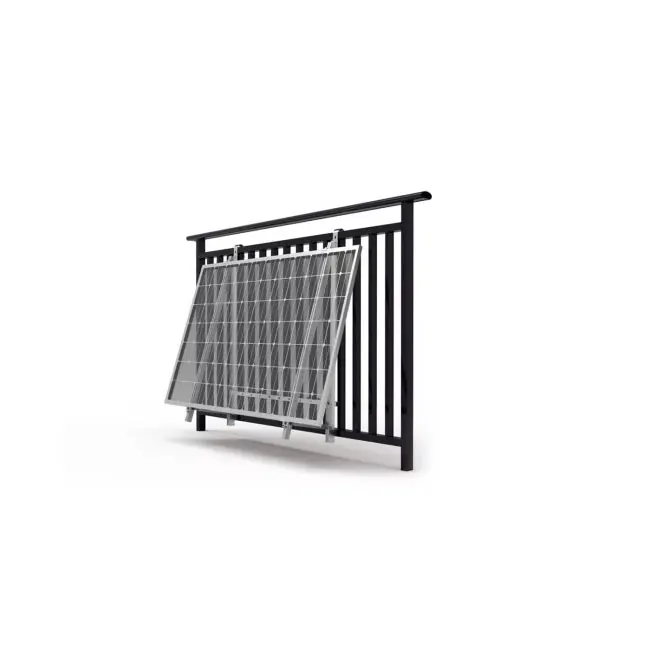

Balcony Support System (Type A - Universal)
Universally compatible with various balcony designs.
10

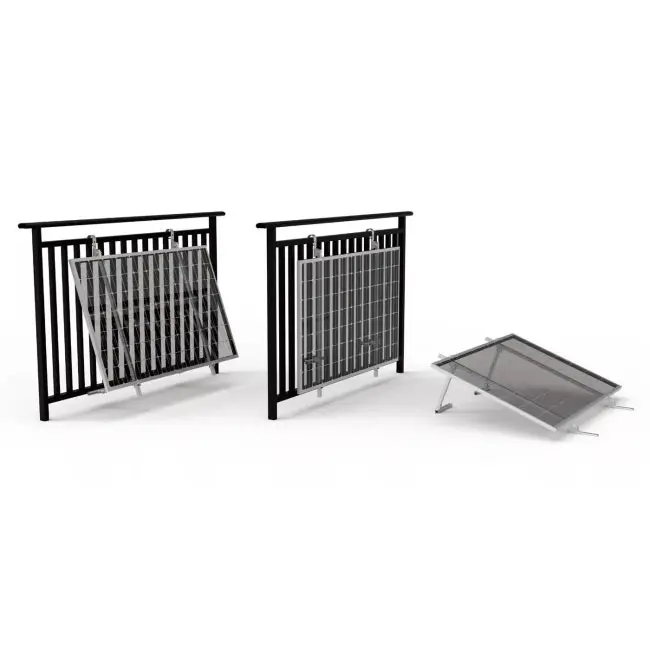

Balcony Bracket System (Type B - Standard)
- Standardized design for streamlined installation and reliable performance.
Why Choose Our Mounting Structures?
01
Innovative Design
Cutting-edge technology tailored to modern PV needs.
02
Flexibility
Systems adaptable to a wide range of applications and environmental conditions.
03
Ease of Installation
Simplified assembly processes to reduce installation time and labor costs.
04
Durability
Materials resistant to corrosion, seismic activity, and extreme weather for long-term use.
05
Custom Solutions
Adjustable systems to meet specific project requirements.
Elevate Your Solar Projects Today
Our mounting solutions are engineered for efficiency, reliability, and sustainability. Partner with us to optimize your solar installations with industry-leading technology. Contact us now for tailored solutions that meet your specific project needs!
