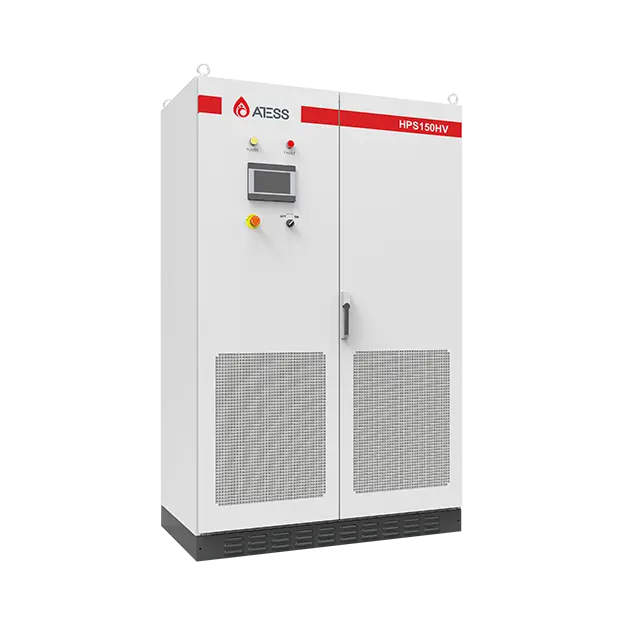

HPS100/150HV Hybrid Inverter
description1
Key Features
01
All-in-One Hybrid Inverter
02
Multiple MPPTs (2 MPPTs)
- Supports 2 MPPTs, offering flexibility for complex PV array designs, optimizing power generation from solar panels with varied orientations and environmental conditions.
03
High PV Voltage Range (1500VDC)
04
High Battery Voltage Range (600-900V)
- The high voltage range allows for greater battery configuration flexibility and enhances system efficiency for large-scale applications.
05
Seamless Transfer
- Provides seamless switching between grid and backup power within 10ms, ensuring uninterrupted power supply during grid failures.
06
Dry Contact Output
- Allows for remote control of Diesel Generators (DG), improving system monitoring and control capabilities.
Technical Specifications
- Rated Power:
- 100 kW (HPS100HV)
- 150 kW (HPS150HV)
- AC Voltage Range: 360V-440V
- Max. PV Power:
- 150 kWp (HPS100HV)
- 225 kWp (HPS150HV)
- Max. PV Voltage: 1500VDC
- PV MPPT Voltage Range: 900-1300 VDC
- Battery Voltage Range at Max. Charge Power: 804-900 V
- Protection Degree: IP20 (Suitable for indoor environments)
Applications
- Medium Commercial & Industrial (C&I) Installations: Ideal for factories, warehouses, offices, and other medium-sized businesses that need high-capacity energy solutions.
- Optimized Energy Management: Excellent for peak-shaving, self-consumption, and grid support, offering businesses enhanced energy flexibility and control.
- Scalable and Cost-Effective: The 1500V PV voltage range reduces installation complexity and costs, while high battery voltage flexibility allows for efficient scaling as power demands increase.
---
The HPS100/150HV Hybrid Inverter is an efficient and flexible solution for medium-sized commercial and industrial applications, offering high voltage configurations, multiple MPPTs, and seamless grid switching to ensure optimal energy use and cost savings.
