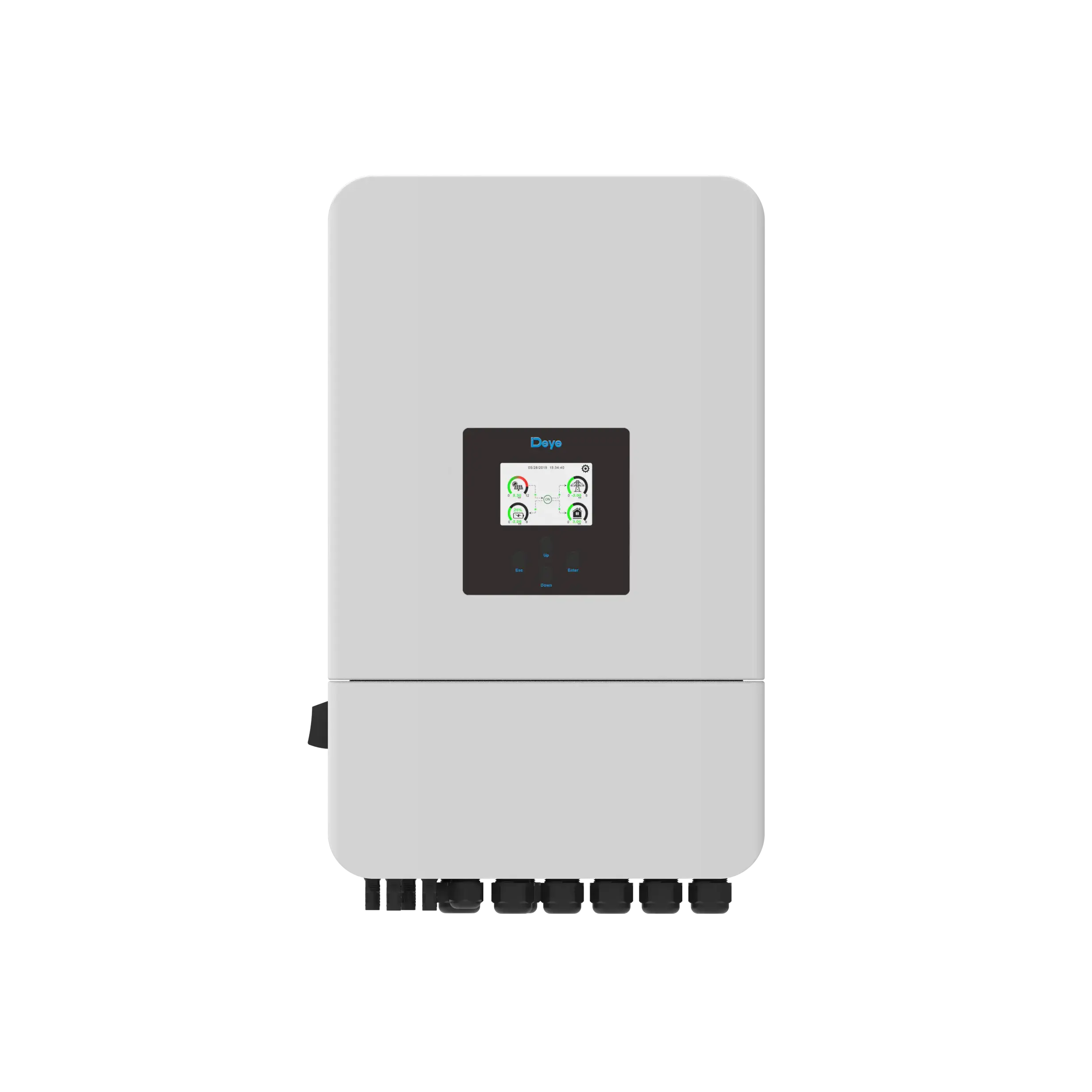

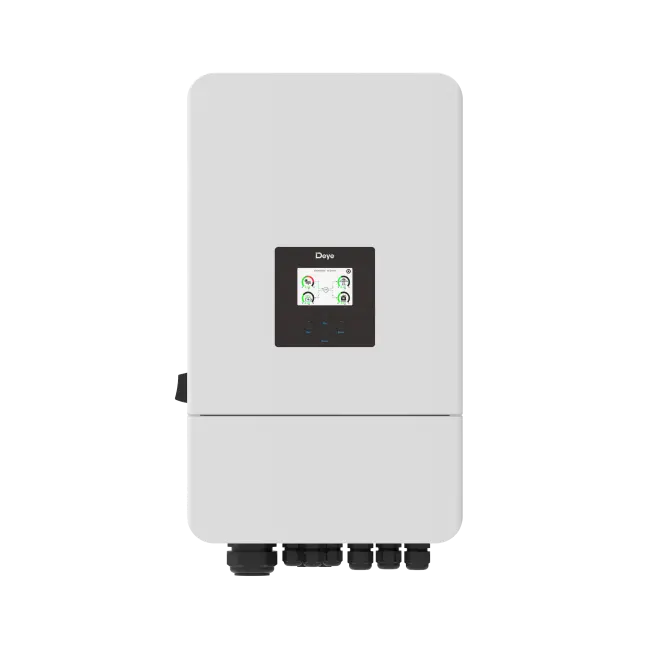

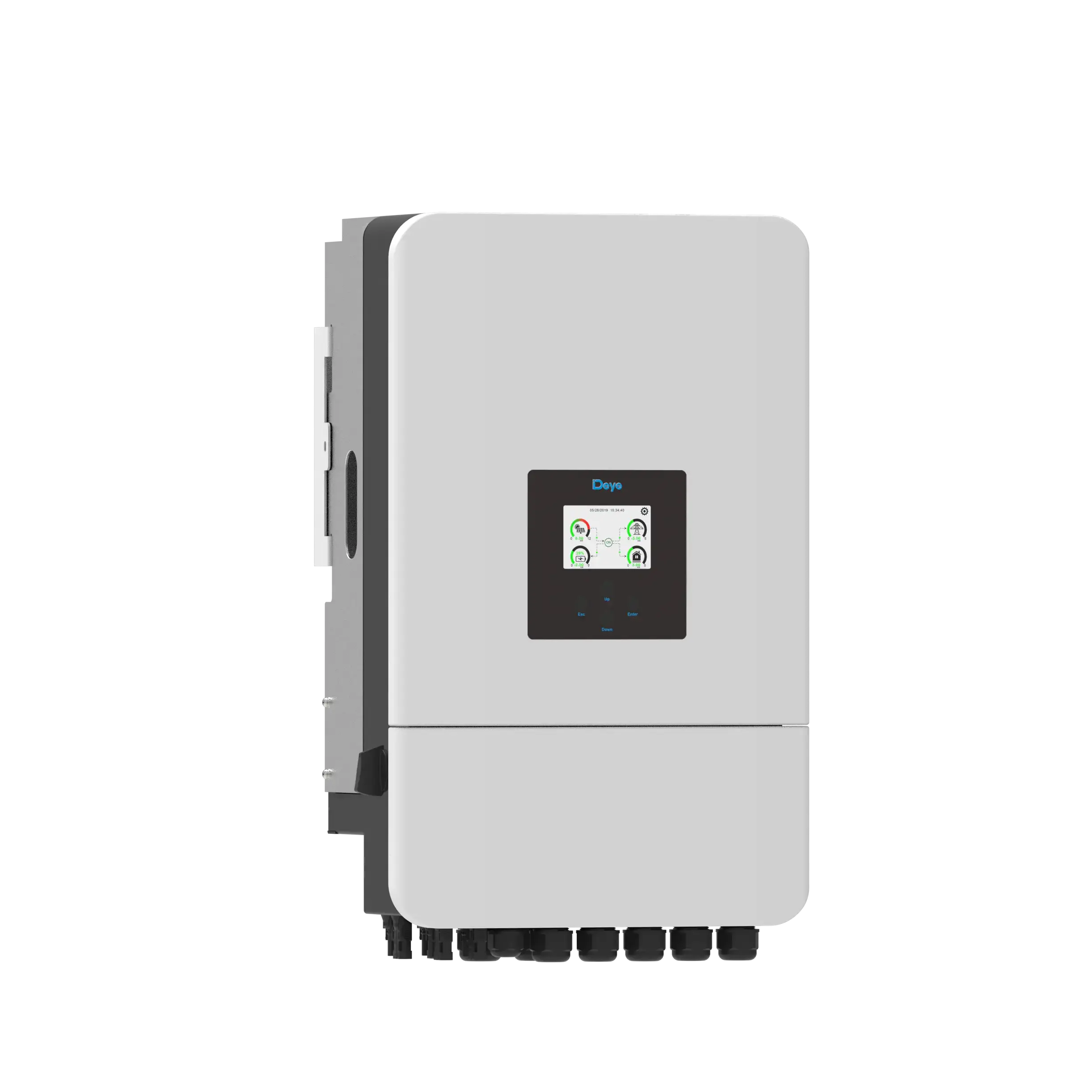

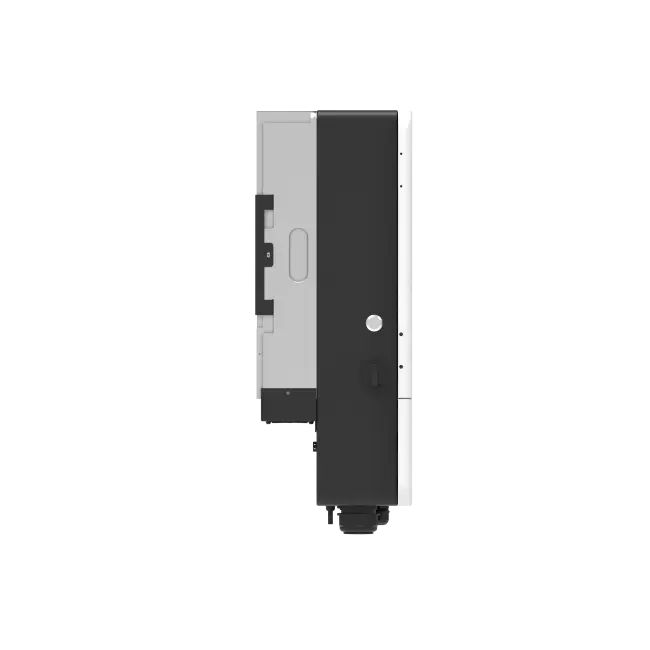

SUN-3/4/5/6/8/10/12K-SG05LP3-EU-SM2 Hybrid Inverter
description1
Key Features
01
Higher Yields
02
Safe & Reliable
- Built with safety and reliability in mind, the inverter offers robust protections against overcharging, deep discharge, and other system risks, ensuring long-term stability and performance.
03
Smart Monitoring Platform
04
100% Unbalanced Output
- The inverter supports 100% unbalanced output, meaning it can handle uneven loads across phases. Additionally, it can output up to 50% of the rated power per phase, offering flexibility for various load scenarios.
05
AC Coupling for Retrofitting
- The inverter is compatible with AC coupling, enabling it to be easily retrofit to existing solar systems, making it an ideal choice for system upgrades.
06
Parallel Capability
- The inverter supports parallel connection of up to 10 units, which enhances the system capacity for both on-grid and off-grid operations. This flexibility allows the inverter to scale with increasing energy needs.
07
Battery Parallel Support
- It supports multiple battery parallel configurations, providing additional energy storage for larger setups and increased system efficiency.
08
Max. Charging/Discharging Current
- The inverter is capable of handling a maximum charging/discharging current of 240A, suitable for larger battery systems.
09
Diesel Generator Integration
- The inverter can store energy generated from a diesel generator, making it a flexible hybrid solution for areas with unreliable solar power availability.
10
48V Low Voltage Battery Support
- The inverter supports 48V low voltage batteries and features a transformer isolation design to ensure safe and reliable operation in various environments.
11
Multiple Time Periods for Charging/Discharging
- The inverter allows for the setup of 6 time periods for battery charging and discharging, offering flexibility to optimize energy usage based on time-of-day rates and system needs.
Technical Specifications
- Rated Power:
- 3-12 kW (scalable based on system needs)
- Voltage Range:
- Three-phase system
- Battery Support:
- Low Voltage (LV) Battery Supported
- MPPTs:
- 2 MPPTs, allowing flexibility in solar array design and improving efficiency.
- Parallel Operation:
- Supports up to 10 inverters in parallel for both on-grid and off-grid configurations.
- Max. Charging/Discharging Current:
- 240A
- Energy Management:
- 6 time periods for battery management and energy storage control.
- Protection Degree:
- Transformer isolation design for safe and reliable operation.
Applications
- Residential & Small Commercial Systems:
This inverter is well-suited for residential and small to medium commercial applications, where flexibility, energy efficiency, and integration with existing systems are key considerations.
- System Retrofit:
The inverter's AC coupling capability makes it ideal for retrofitting existing solar systems, allowing for easy upgrades without a complete system replacement.
- Hybrid Energy Solutions:
With the ability to store energy from a diesel generator, this inverter offers a hybrid solution for areas with inconsistent solar availability, making it a versatile option for various energy setups.
Benefits
01
Scalability and Flexibility
02
Maximized Energy Yield
With high efficiency and features like remote monitoring and parameter adjustment, the inverter ensures that the solar system operates at peak performance, leading to higher energy yields.
03
Safe and Reliable Operation
04
Remote Management
The smart monitoring platform and remote management capabilities simplify system management, allowing for efficient monitoring and troubleshooting from anywhere.
The SUN-3/4/5/6/8/10/12K-SG05LP3-EU-SM2 Hybrid Inverter is a versatile, high-performing solution for residential and small to medium commercial applications. It offers flexible configurations, hybrid capabilities, and a user-friendly interface, making it a reliable choice for modern solar energy systems.
