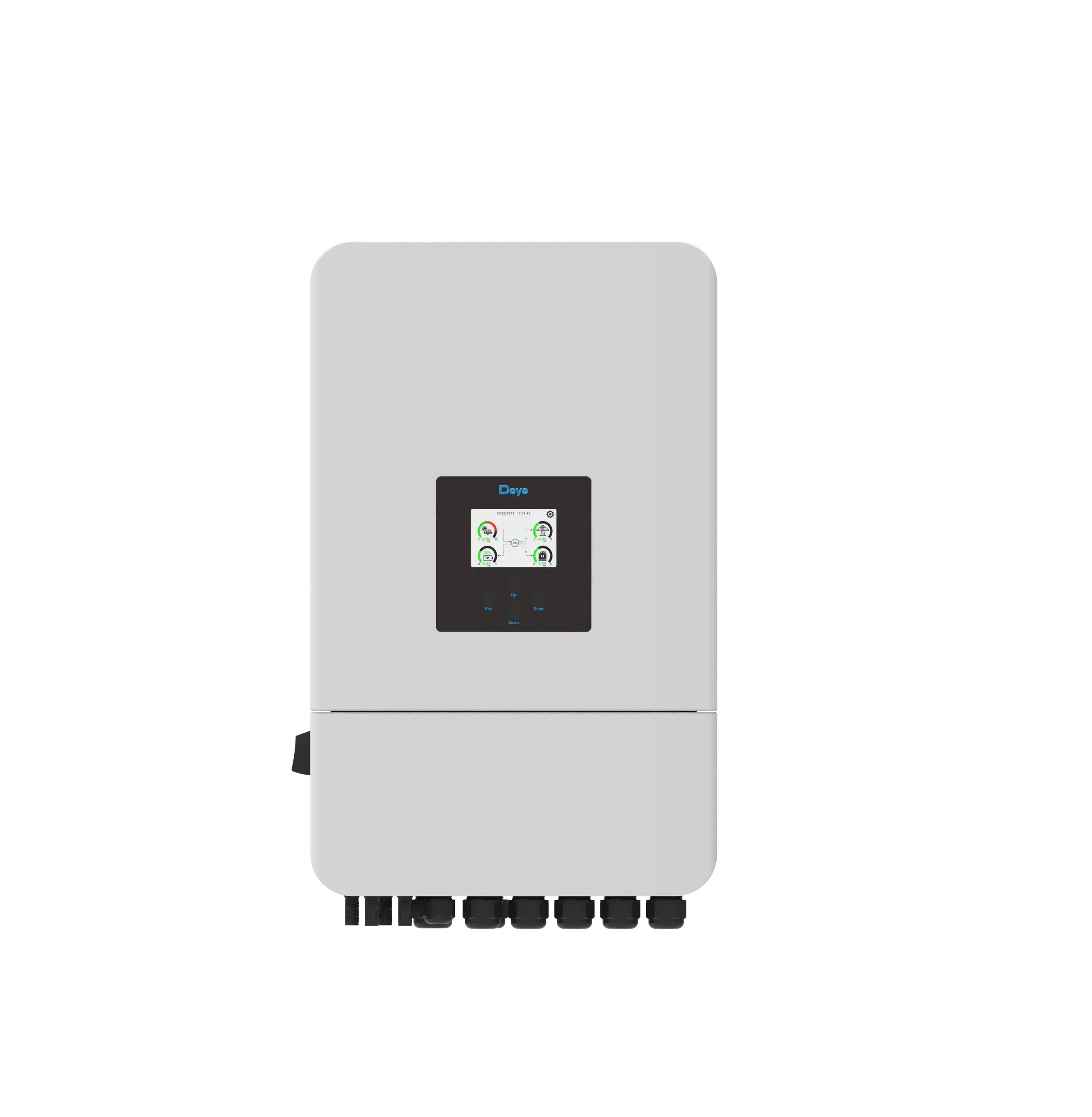

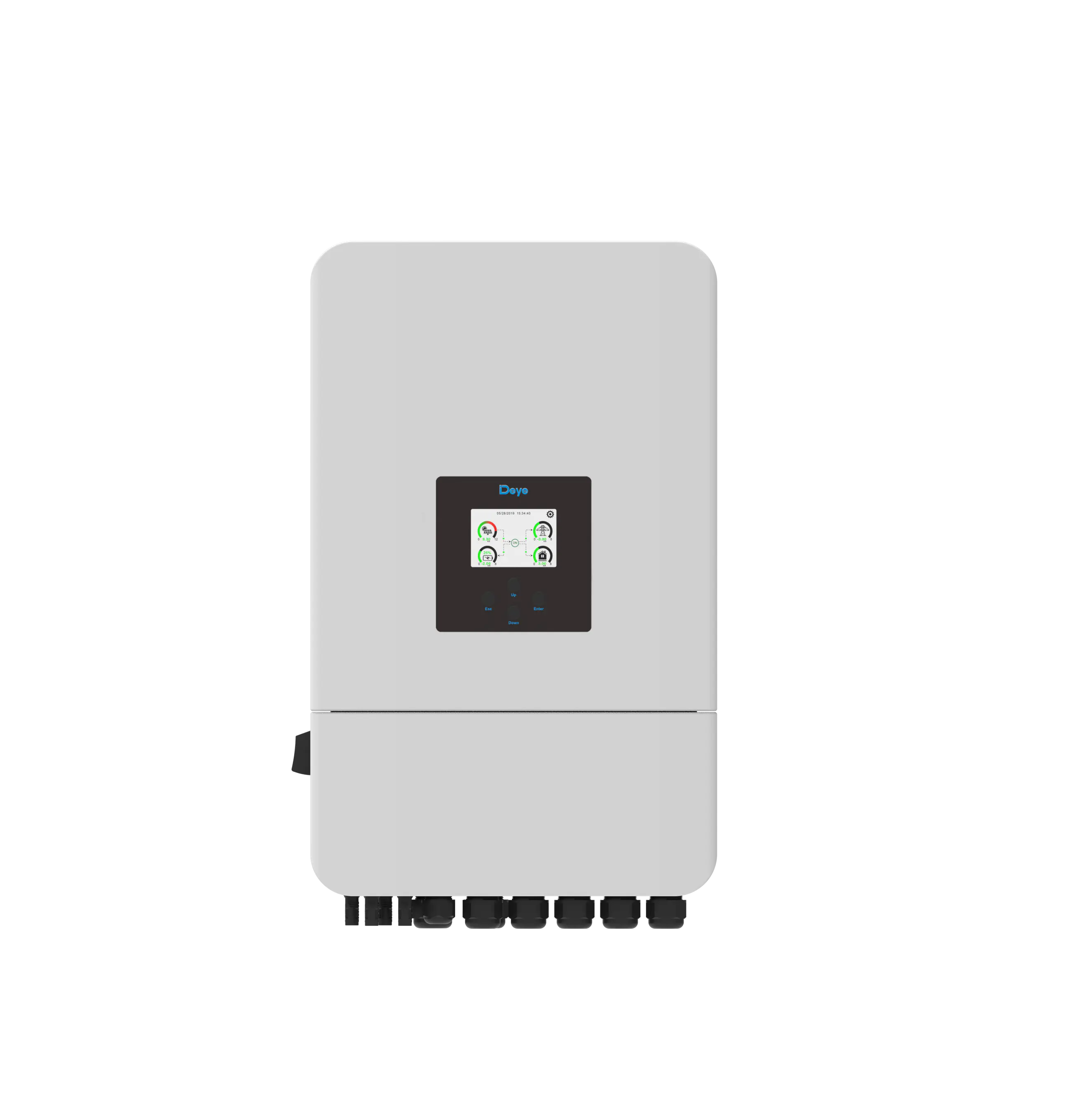

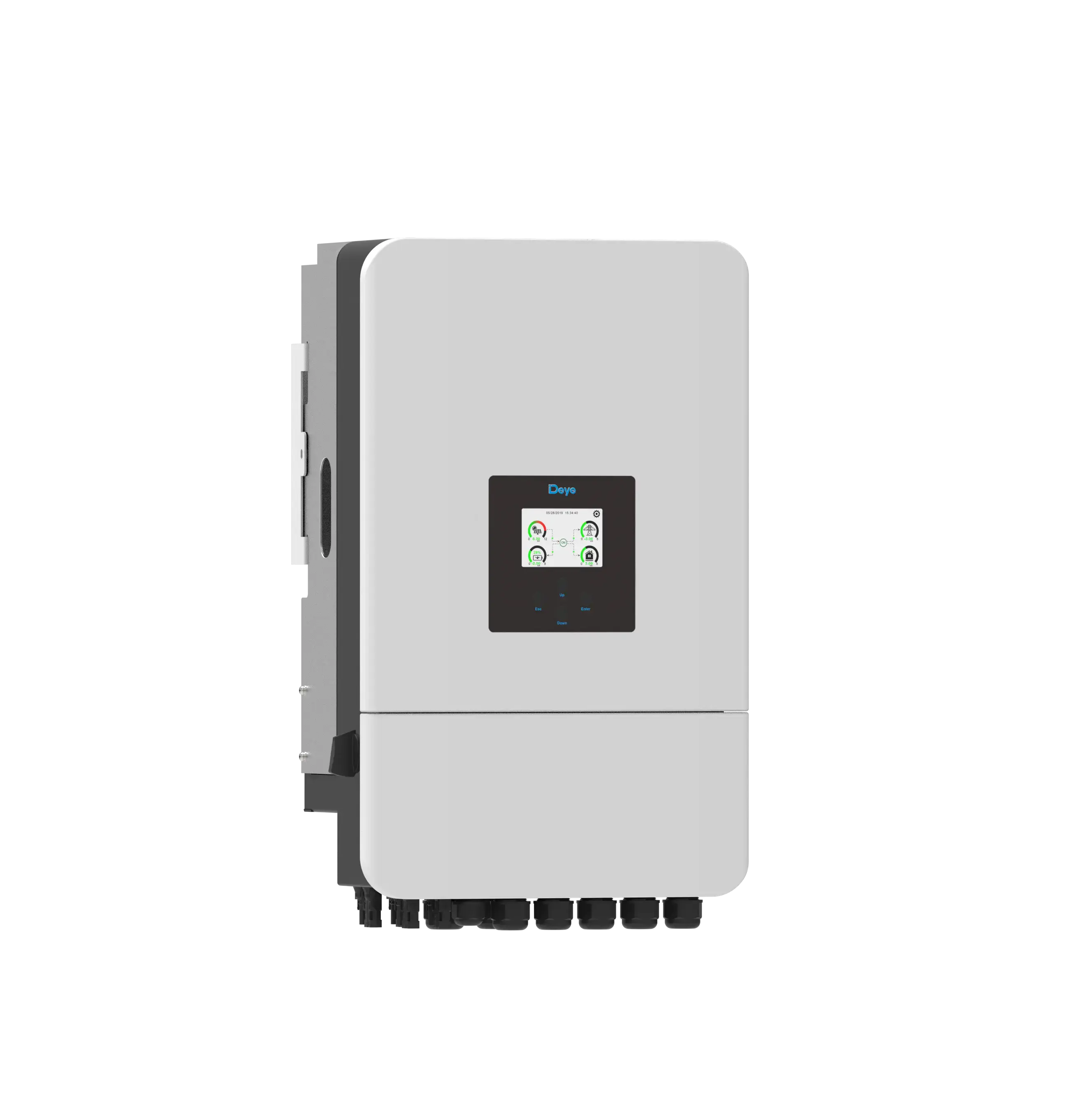

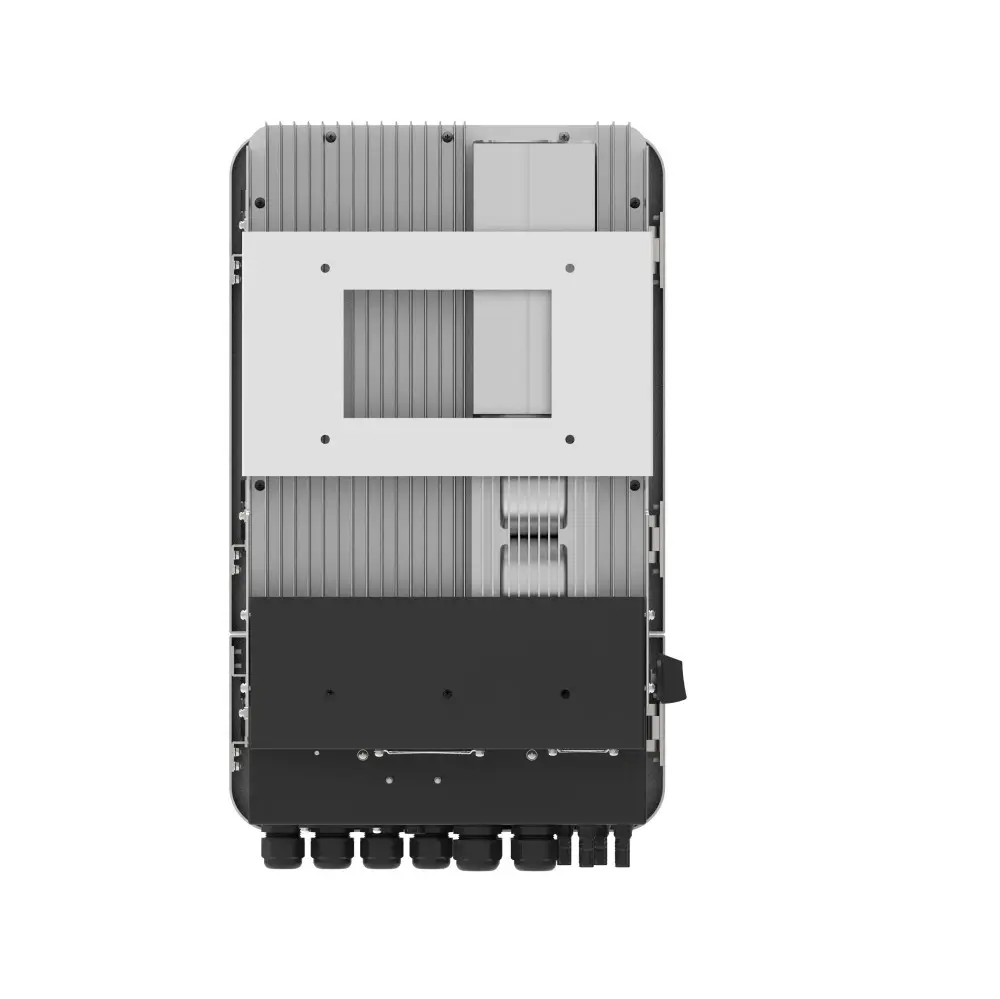

SUN-7/7.6/8K-SG05LP1-EU-SM2 Hybrid Inverter
description1
Key Features
01
Higher Yields
02
Safe & Reliable
- Built with a focus on safety and reliability, the inverter provides robust protection for the solar system, battery, and connected loads.
03
Smart Monitoring Platform
04
Colorful Touch LCD
- The colorful LCD touchscreen makes system setup and parameter adjustment intuitive and user-friendly.
05
IP65 Protection Degree
- With an IP65 rating, the inverter is protected against dust and water, making it suitable for outdoor installation in various environmental conditions.
06
AC Coupling for Retrofitting
- The inverter supports AC coupling, making it possible to retrofit and upgrade existing solar systems without needing a complete overhaul.
07
Parallel Capability
- The system allows for the parallel connection of up to 16 inverters, which can support both on-grid and off-grid operations. This provides flexibility for larger installations and increased system capacity.
08
Battery Parallel Support
- The inverter supports multiple battery parallel configurations, allowing for expanded energy storage and higher system capacity.
09
Max. Charging/Discharging Current
- The inverter can handle a maximum charging/discharging current of 190A, providing ample power for larger battery systems.
10
Multiple Time Periods for Battery Charging/Discharging
- Users can set up to 6 time periods for battery charging and discharging, optimizing energy use based on time-of-day rates and system needs.
11
Diesel Generator Integration
- The inverter supports energy storage from a diesel generator, providing a hybrid solution for areas with unreliable or limited access to solar power.
Technical Specifications
- Rated Power:
- 7-8 kW
- Voltage Range:
- Single-phase
- Battery Support:
- Low Voltage (LV) Battery Supported
- MPPTs:
- 2 MPPTs, allowing flexibility in solar array design.
- Parallel Operation:
- Supports up to 16 inverters in parallel for both on-grid and off-grid configurations.
- Max. Charging/Discharging Current:
- 190A
- Energy Management:
- 6 time periods for battery management and energy storage control.
- Protection Degree:
- IP65, providing robust dust and water resistance.
Applications
- Residential & Small Commercial:
Ideal for small homes, schools, and small businesses looking for reliable and efficient hybrid inverter solutions with energy storage capabilities.
- Retrofit Existing Systems:
Its AC coupling feature allows it to be easily added to existing systems, enabling upgrades without the need to replace the entire system.
- Hybrid Energy Solutions:
The integration of solar, battery storage, and diesel generators makes this inverter a versatile choice for hybrid energy systems.
Benefits
01
Maximized Energy Yields
02
Remote Monitoring & Control
The smart monitoring platform and remote management features enhance system usability, enabling users to monitor performance and make necessary adjustments without on-site visits.
03
Scalable & Flexible
04
Robust Protection & Durability
The IP65 protection ensures the inverter is durable and can withstand various weather conditions, offering reliable long-term performance.
The SUN-7/7.6/8K-SG05LP1-EU-SM2 Hybrid Inverter is an excellent choice for residential and small commercial solar systems, offering high performance, energy storage capabilities, and remote management features. Its flexible configuration options, robust design, and scalability make it a versatile solution for both new installations and retrofits.
